01. Quick Start

CaliBrain studies whether posterior uncertainty estimates in M/EEG inverse source imaging are empirically calibrated. In a calibrated model, intervals requested at nominal coverage c should contain the true simulated source activity approximately c of the time.

This first tutorial serves as both the introduction and the scientific background entry point for the runnable gallery. It uses lightweight synthetic fixed-orientation source arrays so that the gallery build remains fast and reproducible.

Scientific question

M/EEG inverse problems are ill posed: multiple source configurations can explain the same sensor data. A useful inverse method should therefore report uncertainty, not only a point estimate. CaliBrain evaluates that uncertainty through coverage calibration.

Here we construct the minimal objects required for a calibration curve:

• x_true: simulated ground-truth source activity,

• x_hat: posterior mean estimate,

• posterior_var: source-wise posterior variance.

import matplotlib.pyplot as plt
import numpy as np

from calibrain import UncertaintyEstimator


RANDOM_SEED = 7

rng = np.random.default_rng(RANDOM_SEED)

Simulate sparse fixed-orientation source activity

The source matrix has shape (n_sources, n_times). Most sources are zero; a small subset contains ERP-like activity. The full source-simulation setup is explained in Source simulation.

n_sources = 48
n_times = 80
time = np.linspace(-0.2, 0.5, n_times)

x_true = np.zeros((n_sources, n_times))
active_sources = rng.choice(n_sources, size=5, replace=False)
erp_waveform = np.exp(-0.5 * ((time - 0.12) / 0.045) ** 2)
x_true[active_sources] = rng.normal(1.0, 0.2, size=(5, 1)) * erp_waveform

Create a simple posterior estimate

In real workflows, inverse solvers such as gamma_map_sflex or BMN produce posterior means and covariance estimates. Those steps are covered in Source estimation. This quick start uses controlled synthetic posterior statistics so the calibration concept is isolated from solver details.

posterior_var = np.full(n_sources, 0.06**2)
x_hat = x_true + rng.normal(
    loc=0.0,
    scale=np.sqrt(posterior_var)[:, None],
    size=x_true.shape,
)

Compute empirical coverage

UncertaintyEstimator constructs intervals over a nominal coverage grid and reports the empirical fraction of source values covered by those intervals. The aggregated method averages over time before evaluating source-level intervals. The uncertainty representations used in the workflow are explained in Uncertainty estimation.

nominal_coverages = np.linspace(0.0, 1.0, 11)
uncertainty = UncertaintyEstimator(nominal_coverages=nominal_coverages)
curve = uncertainty.calibration_curve_intervals_aggregated(
    x_true=x_true,
    x_hat=x_hat,
    posterior_var=posterior_var,
)

print(np.round(curve["empirical_coverages"], 3))

[0.    0.125 0.229 0.354 0.458 0.542 0.542 0.646 0.771 0.854 1.   ]

Plot the calibration curve

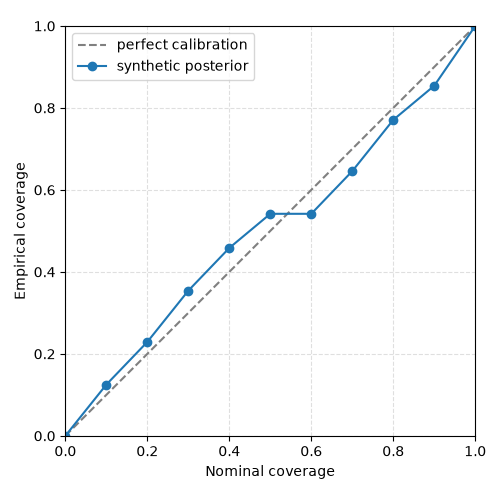

The dashed diagonal is perfect calibration. Points below the diagonal indicate undercoverage, i.e. overconfident uncertainty. Points above the diagonal indicate overcoverage, i.e. underconfident uncertainty. Post-calibration variants of this analysis are covered in Calibration methods.

fig, ax = plt.subplots(figsize=(5, 5))
ax.plot([0, 1], [0, 1], "--", color="0.5", label="perfect calibration")
ax.plot(
    curve["nominal_coverages"],
    curve["empirical_coverages"],
    "o-",
    label="synthetic posterior",
)
ax.set(
    xlabel="Nominal coverage",
    ylabel="Empirical coverage",
    xlim=(0, 1),
    ylim=(0, 1),
)
ax.set_aspect("equal", adjustable="box")
ax.grid(True, linestyle="--", alpha=0.4)
ax.legend()
fig.tight_layout()
