06. Uncertainty Estimation

This tutorial mainly explains the UncertaintyEstimator class. It demonstrates how UncertaintyEstimator converts source reconstruction outputs into calibration-ready uncertainty representations.

It covers:

• fixed-orientation aggregated marginal intervals;

• free-orientation EEG aggregated marginal intervals;

• free-orientation EEG aggregated full_cov ellipsoids;

• pre-calibration empirical coverage curves before isotonic recalibration.

Scientific motivation

Source estimation returns posterior means and posterior covariance matrices, but calibration does not operate on those objects directly. UncertaintyEstimator turns them into uncertainty representations that can be evaluated against ground truth.

In the current workflow this means:

• fixed orientation uses scalar posterior_var derived from the diagonal of the covariance;

• free-orientation EEG can be evaluated either with pooled component-wise marginal intervals or with local 3D full_cov ellipsoids;

• the default workflow uses temporally aggregated calibration, so means are averaged over time and covariance is scaled by 1 / T.

import matplotlib.pyplot as plt
import numpy as np
from mne.io.constants import FIFF

from calibrain import (
    SensorSimulator,
    SourceEstimator,
    SourceSimulator,
    UncertaintyEstimator,
    gamma_map_sflex,
)


RANDOM_SEED = 53

Build a lightweight posterior example

The tutorial is self-contained: simulate source activity, project it to EEG sensors, add noise, reconstruct sources with gamma_map_sflex, then pass the posterior outputs into UncertaintyEstimator.

Units:

• source amplitudes are in nAm;

• source coordinates for sFLEX are in m;

• EEG leadfields are interpreted as µV / nAm;

• sensor signals are therefore in µV.

erp_config = {
    "tmin": -0.1,
    "tmax": 0.8,
    "stim_onset": 0.0,
    "sfreq": 100,
    "fmin": 2,
    "fmax": 8,
    "amplitude_distribution": {
        "median": 8.0,
        "sigma": 0.15,
        "clip": [2.0, 20.0],
    },
    "random_erp_timing": False,
    "erp_min_length": 20,
}

nominal_coverages = np.linspace(0.0, 1.0, 11)
uncertainty_estimator = UncertaintyEstimator(nominal_coverages=nominal_coverages)
source_simulator = SourceSimulator(ERP_config=erp_config)
sensor_simulator = SensorSimulator()
times = np.arange(erp_config["tmin"], erp_config["tmax"], 1.0 / erp_config["sfreq"])

rng = np.random.default_rng(RANDOM_SEED)
n_sensors = 16
n_sources = 32
src_coords = rng.normal(scale=0.04, size=(n_sources, 3))

leadfield_fixed = rng.normal(scale=0.03, size=(n_sensors, n_sources))
leadfield_fixed /= np.maximum(
    np.linalg.norm(leadfield_fixed, axis=0, keepdims=True),
    np.finfo(float).eps,
)
leadfield_fixed *= 0.6

leadfield_free_eeg = rng.normal(scale=0.015, size=(n_sensors, n_sources, 3))
leadfield_free_eeg /= np.maximum(
    np.linalg.norm(leadfield_free_eeg, axis=0, keepdims=True),
    np.finfo(float).eps,
)
leadfield_free_eeg *= 0.4

sensor_simulator.set_sensor_metadata(
    kind=FIFF.FIFFV_EEG_CH,
    units=FIFF.FIFF_UNIT_V,
    unitmult=FIFF.FIFF_UNITM_MU,
    coil_type=FIFF.FIFFV_COIL_EEG,
)

Fixed orientation: from posterior covariance to posterior_var

For fixed orientation, calibration uses a 1D variance per source. This is the reduced representation written downstream into aggregated .npz files.

x_true_fixed, active_fixed = source_simulator.simulate(
    n_sources=n_sources,
    nnz=4,
    orientation_type="fixed",
    seed=RANDOM_SEED,
)

y_fixed_clean, y_fixed_noisy, fixed_noise, fixed_eta = sensor_simulator.simulate(
    x=x_true_fixed,
    L=leadfield_fixed,
    alpha_SNR=0.7,
    sensor_white_noise_std=0.2,
    seed=RANDOM_SEED,
)
fixed_noise_var = float(np.var(fixed_noise))

fixed_estimator = SourceEstimator(
    solver=gamma_map_sflex,
    solver_params={"max_iter": 150, "tol": 1e-7, "sigma": 0.01, "src_coords": src_coords},
    noise_var=fixed_noise_var,
    n_orient=1,
)
fixed_estimator.fit(leadfield_fixed, y_fixed_noisy)
fixed_result = fixed_estimator.predict()

posterior_var_fixed = uncertainty_estimator.posterior_variance_from_cov(
    fixed_result["posterior_cov"]
)

print("fixed posterior_mean shape:", fixed_result["posterior_mean"].shape)
print("fixed posterior_cov shape:", fixed_result["posterior_cov"].shape)
print("fixed posterior_var shape:", posterior_var_fixed.shape)

fixed posterior_mean shape: (32, 90)
fixed posterior_cov shape: (32, 32)
fixed posterior_var shape: (32,)

Fixed orientation: aggregated intervals and pre-calibration curve

The active workflow uses aggregated calibration. UncertaintyEstimator averages source time courses over time and scales variance by 1 / T.

fixed_membership = uncertainty_estimator.aggregated_interval_membership(
    x_true=x_true_fixed,
    x_hat=fixed_result["posterior_mean"],
    posterior_var=posterior_var_fixed,
    nominal_coverage=0.9,
)
fixed_curve = uncertainty_estimator.calibration_curve_intervals_aggregated(
    x_true=x_true_fixed,
    x_hat=fixed_result["posterior_mean"],
    posterior_var=posterior_var_fixed,
)

print("fixed aggregated empirical coverage at 0.9:", fixed_membership["empirical_coverage"])
print("fixed interval_type:", fixed_curve["interval_type"])

fixed aggregated empirical coverage at 0.9: 1.0
fixed interval_type: marginal

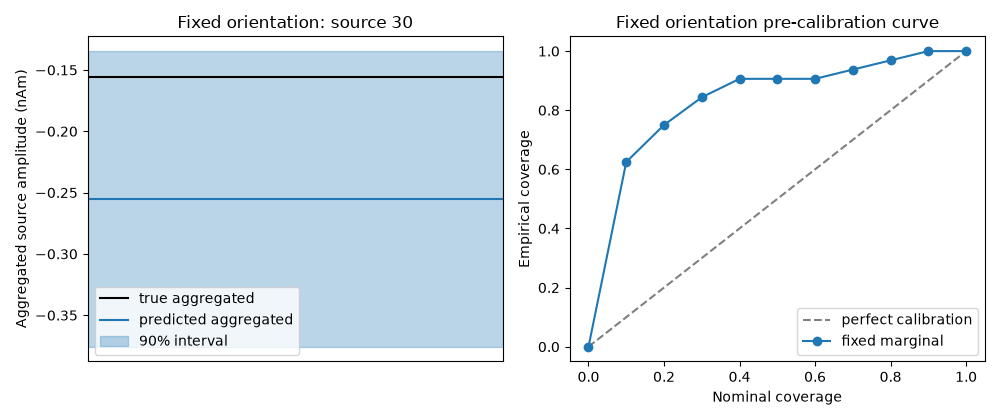

Plot a fixed-orientation aggregated interval example

The interval is shown for the time-averaged prediction of one active source.

fixed_source_idx = int(np.atleast_1d(active_fixed)[0])

fig, axes = plt.subplots(1, 2, figsize=(10, 4.2))
axes[0].axhline(fixed_membership["x_true_agg"][fixed_source_idx], color="black", label="true aggregated")
axes[0].axhline(fixed_membership["x_hat_agg"][fixed_source_idx], color="C0", label="predicted aggregated")
axes[0].fill_between(
    [0, 1],
    [fixed_membership["ci_lower"][fixed_source_idx]] * 2,
    [fixed_membership["ci_upper"][fixed_source_idx]] * 2,
    alpha=0.3,
    color="C0",
    label="90% interval",
)
axes[0].set(
    xlim=(0, 1),
    xticks=[],
    ylabel="Aggregated source amplitude (nAm)",
    title=f"Fixed orientation: source {fixed_source_idx}",
)
axes[0].legend(loc="best")

axes[1].plot([0, 1], [0, 1], "--", color="0.5", label="perfect calibration")
axes[1].plot(
    fixed_curve["nominal_coverages"],
    fixed_curve["empirical_coverages"],
    marker="o",
    label="fixed marginal",
)
axes[1].set(
    xlabel="Nominal coverage",
    ylabel="Empirical coverage",
    title="Fixed orientation pre-calibration curve",
)
axes[1].legend(loc="best")
fig.tight_layout()

Free EEG orientation: marginal versus full_cov

For free-orientation EEG, calibration can use two uncertainty types:

• marginal: use only component-wise variances and pool over the three local orientation components;

• full_cov: use each local 3 x 3 covariance block and test coverage with 3D ellipsoids.

Both use the same posterior mean and posterior covariance, but they answer slightly different questions.

x_true_free, active_free = source_simulator.simulate(
    n_sources=n_sources,
    nnz=4,
    orientation_type="free",
    coil_type=FIFF.FIFFV_COIL_EEG,
    seed=RANDOM_SEED + 1,
)

y_free_clean, y_free_noisy, free_noise, free_eta = sensor_simulator.simulate(
    x=x_true_free,
    L=leadfield_free_eeg,
    alpha_SNR=0.7,
    sensor_white_noise_std=0.05,
    seed=RANDOM_SEED + 1,
)
free_noise_var = float(np.var(free_noise))

free_estimator = SourceEstimator(
    solver=gamma_map_sflex,
    solver_params={"max_iter": 150, "tol": 1e-7, "sigma": 0.01, "src_coords": src_coords},
    noise_var=free_noise_var,
    n_orient=3,
)
free_estimator.fit(leadfield_free_eeg, y_free_noisy)
free_result = free_estimator.predict()

print("free EEG posterior_mean shape:", free_result["posterior_mean"].shape)
print("free EEG posterior_mean_reshaped shape:", free_result["posterior_mean_reshaped"].shape)
print("free EEG posterior_cov shape:", free_result["posterior_cov"].shape)

free EEG posterior_mean shape: (96, 90)
free EEG posterior_mean_reshaped shape: (32, 3, 90)
free EEG posterior_cov shape: (96, 96)

Compute aggregated pre-calibration curves

marginal works with the same full covariance input, but only uses its diagonal entries source-by-source. full_cov uses the full local 3D blocks.

free_curve_marginal = uncertainty_estimator.calibration_curve_componentwise_eeg_free_aggregated(
    x_true=x_true_free,
    x_hat=free_result["posterior_mean_reshaped"],
    posterior_uncert=free_result["posterior_cov"],
)
free_curve_full_cov = uncertainty_estimator.calibration_curve_ellipsoid_eeg_free_aggregated(
    x_true=x_true_free,
    x_hat=free_result["posterior_mean_reshaped"],
    posterior_cov=free_result["posterior_cov"],
)

free_membership_marginal = uncertainty_estimator.aggregated_componentwise_interval_membership_free(
    x_true=x_true_free,
    x_hat=free_result["posterior_mean_reshaped"],
    posterior_uncert=free_result["posterior_cov"],
    nominal_coverage=0.9,
    n_orient=3,
)
free_membership_full_cov = uncertainty_estimator.aggregated_ellipsoid_membership_eeg_free(
    x_true=x_true_free,
    x_hat=free_result["posterior_mean_reshaped"],
    posterior_cov=free_result["posterior_cov"],
    nominal_coverage=0.9,
)

print("free marginal interval_type:", free_curve_marginal["interval_type"])
print("free full_cov interval_type:", free_curve_full_cov["interval_type"])
print("free marginal empirical coverage at 0.9:", free_membership_marginal["empirical_coverage"])
print("free full_cov empirical coverage at 0.9:", free_membership_full_cov["empirical_coverage"])

free marginal interval_type: marginal
free full_cov interval_type: full_cov
free marginal empirical coverage at 0.9: 0.9791666666666666
free full_cov empirical coverage at 0.9: 1.0

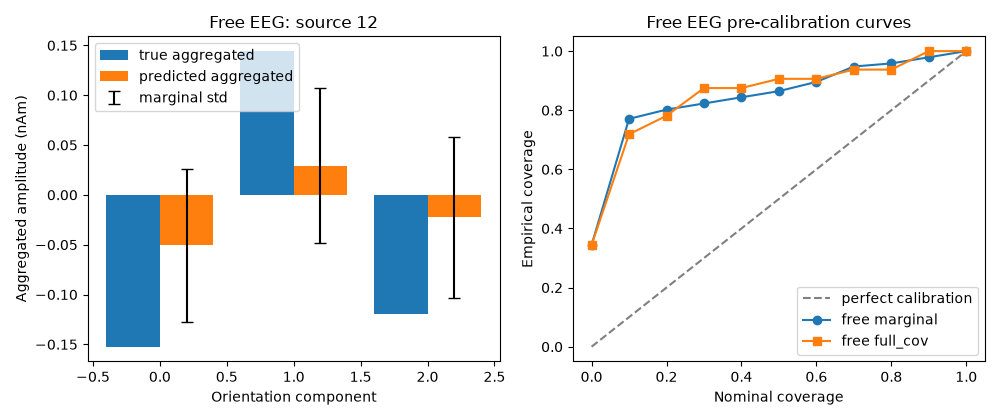

Plot free-orientation uncertainty representations

The left plot shows time-aggregated component norms for one active source. The right plot compares aggregated pre-calibration curves for marginal and full_cov uncertainty.

free_source_idx = int(np.atleast_1d(active_free)[0])
true_free_norm = np.linalg.norm(np.mean(x_true_free, axis=2), axis=1)
est_free_norm = np.linalg.norm(np.mean(free_result["posterior_mean_reshaped"], axis=2), axis=1)
free_component_var_agg = free_membership_marginal["posterior_var_agg"][free_source_idx]

fig, axes = plt.subplots(1, 2, figsize=(10, 4.2))
axes[0].bar(
    np.arange(3) - 0.2,
    np.mean(x_true_free[free_source_idx], axis=1),
    width=0.4,
    label="true aggregated",
)
axes[0].bar(
    np.arange(3) + 0.2,
    np.mean(free_result["posterior_mean_reshaped"][free_source_idx], axis=1),
    width=0.4,
    label="predicted aggregated",
)
axes[0].errorbar(
    np.arange(3) + 0.2,
    np.mean(free_result["posterior_mean_reshaped"][free_source_idx], axis=1),
    yerr=np.sqrt(free_component_var_agg),
    fmt="none",
    ecolor="black",
    capsize=4,
    label="marginal std",
)
axes[0].set(
    xlabel="Orientation component",
    ylabel="Aggregated amplitude (nAm)",
    title=f"Free EEG: source {free_source_idx}",
)
axes[0].legend(loc="best")

axes[1].plot([0, 1], [0, 1], "--", color="0.5", label="perfect calibration")
axes[1].plot(
    free_curve_marginal["nominal_coverages"],
    free_curve_marginal["empirical_coverages"],
    marker="o",
    label="free marginal",
)
axes[1].plot(
    free_curve_full_cov["nominal_coverages"],
    free_curve_full_cov["empirical_coverages"],
    marker="s",
    label="free full_cov",
)
axes[1].set(
    xlabel="Nominal coverage",
    ylabel="Empirical coverage",
    title="Free EEG pre-calibration curves",
)
axes[1].legend(loc="best")
fig.tight_layout()

Summary

UncertaintyEstimator is the bridge between posterior covariance and calibration-ready uncertainty.

In the current workflow:

• fixed orientation stores a reduced posterior_var representation;

• free EEG with marginal uses pooled component-wise variances;

• free EEG with full_cov uses local 3 x 3 covariance blocks;

• aggregated calibration is the default mode, so uncertainty is evaluated on time-averaged predictions.
