04. Sensor Simulation

This tutorial mainly explains the SensorSimulator class. It projects source activity through a leadfield, then adds Gaussian sensor noise with the alpha_SNR mixing rule implemented by SensorSimulator.

The examples cover:

• fixed-orientation projection;

• free-orientation EEG projection;

• free-orientation MEG projection;

• the effect of different alpha_SNR settings;

• workflow noise-variance quantities used downstream by source estimation.

Scientific motivation

Source simulation produces ground-truth dipole moments at source locations, but inverse solvers operate on sensor measurements. SensorSimulator bridges this gap by applying the forward model:

y_clean = L x

and then adding white sensor noise:

y_noisy = y_clean + eta * eps.

Here eps is Gaussian noise and eta is chosen from alpha_SNR using Frobenius norms. The result is a controlled sensor-level dataset that can be passed to inverse solvers.

In the current CaliBrain workflow, this sensor-level simulation also defines the three noise-variance modes used later by source estimation:

• oracle: use the variance of the injected sensor noise;

• baseline: estimate variance from the pre-stimulus sensor segment;

• adaptive_joint_learning: do not fix noise_var here; let the solver learn it jointly from the data.

import matplotlib.pyplot as plt
import numpy as np
from mne.io.constants import FIFF

from calibrain import SensorSimulator, SourceSimulator


RANDOM_SEED = 31

Configure source simulation

Source amplitudes are in nAm. The leadfield units determine the sensor units:

• if L is in fT / nAm, then sensor outputs are in fT;

• if L is in µV / nAm, then sensor outputs are in µV.

erp_config = {
    "tmin": -0.1,
    "tmax": 0.8,
    "stim_onset": 0.0,
    "sfreq": 100,
    "fmin": 2,
    "fmax": 8,
    "amplitude_distribution": {
        "median": 8.0,
        "sigma": 0.15,
        "clip": [2.0, 20.0],
    },
    "random_erp_timing": False,
    "erp_min_length": 20,
}

source_simulator = SourceSimulator(ERP_config=erp_config)
sensor_simulator = SensorSimulator()
times = np.arange(
    erp_config["tmin"],
    erp_config["tmax"],
    1.0 / erp_config["sfreq"],
)

Build small tutorial leadfields

These are synthetic leadfields for demonstration only:

• fixed: shape (n_sensors, n_sources);

• free EEG: shape (n_sensors, n_sources, 3) in µV / nAm;

• free MEG: shape (n_sensors, n_sources, 2) in fT / nAm.

rng = np.random.default_rng(RANDOM_SEED)
n_sensors = 16
n_sources = 40

leadfield_fixed = rng.normal(scale=0.15, size=(n_sensors, n_sources))
leadfield_free_eeg = rng.normal(scale=0.03, size=(n_sensors, n_sources, 3))
leadfield_free_meg = rng.normal(scale=4.0, size=(n_sensors, n_sources, 2))

Simulate source activity

The three source arrays match the three leadfield conventions used below.

x_fixed, active_fixed = source_simulator.simulate(
    n_sources=n_sources,
    nnz=4,
    orientation_type="fixed",
    seed=RANDOM_SEED,
)

x_free_eeg, active_free_eeg = source_simulator.simulate(
    n_sources=n_sources,
    nnz=4,
    orientation_type="free",
    coil_type=FIFF.FIFFV_COIL_EEG,
    seed=RANDOM_SEED,
)

x_free_meg, active_free_meg = source_simulator.simulate(
    n_sources=n_sources,
    nnz=4,
    orientation_type="free",
    coil_type=FIFF.FIFFV_COIL_VV_MAG_T1,
    seed=RANDOM_SEED,
)

print("fixed source shape:", x_fixed.shape)
print("free EEG source shape:", x_free_eeg.shape)
print("free MEG source shape:", x_free_meg.shape)

fixed source shape: (40, 90)
free EEG source shape: (40, 3, 90)
free MEG source shape: (40, 2, 90)

Fixed-orientation sensor simulation

For fixed orientation, projection is simple matrix multiplication y_clean = L @ x.

sensor_simulator.set_sensor_metadata(
    kind=FIFF.FIFFV_MEG_CH,
    units=FIFF.FIFF_UNIT_T,
    unitmult=FIFF.FIFF_UNITM_F,
    coil_type=FIFF.FIFFV_COIL_VV_MAG_T1,
)

y_fixed_clean, y_fixed_noisy, fixed_noise, fixed_eta = sensor_simulator.simulate(
    x=x_fixed,
    L=leadfield_fixed,
    alpha_SNR=0.7,
    sensor_white_noise_std=1.0,
    seed=RANDOM_SEED,
)

print("fixed sensor shape:", y_fixed_clean.shape)
print("fixed eta:", fixed_eta)
print("sensor units:", sensor_simulator.units, "unitmult:", sensor_simulator.unitmult)

fixed sensor shape: (16, 90)
fixed eta: 0.36793688114720363
sensor units: 112 (FIFF_UNIT_T) unitmult: -15 (FIFF_UNITM_F)

Free-orientation EEG sensor simulation

EEG free orientation uses three local components per source, so the leadfield shape is (n_sensors, n_sources, 3).

sensor_simulator.set_sensor_metadata(
    kind=FIFF.FIFFV_EEG_CH,
    units=FIFF.FIFF_UNIT_V,
    unitmult=FIFF.FIFF_UNITM_MU,
    coil_type=FIFF.FIFFV_COIL_EEG,
)

y_eeg_clean, y_eeg_noisy, eeg_noise, eeg_eta = sensor_simulator.simulate(
    x=x_free_eeg,
    L=leadfield_free_eeg,
    alpha_SNR=0.7,
    sensor_white_noise_std=0.1,
    seed=RANDOM_SEED,
)

print("free EEG sensor shape:", y_eeg_clean.shape)
print("free EEG eta:", eeg_eta)

free EEG sensor shape: (16, 90)
free EEG eta: 1.1724223634943463

Free-orientation MEG sensor simulation

MEG free orientation uses the reduced two-component representation, so the leadfield shape is (n_sensors, n_sources, 2).

sensor_simulator.set_sensor_metadata(
    kind=FIFF.FIFFV_MEG_CH,
    units=FIFF.FIFF_UNIT_T,
    unitmult=FIFF.FIFF_UNITM_F,
    coil_type=FIFF.FIFFV_COIL_VV_MAG_T1,
)

y_meg_clean, y_meg_noisy, meg_noise, meg_eta = sensor_simulator.simulate(
    x=x_free_meg,
    L=leadfield_free_meg,
    alpha_SNR=0.7,
    sensor_white_noise_std=1.0,
    seed=RANDOM_SEED,
)

print("free MEG sensor shape:", y_meg_clean.shape)
print("free MEG eta:", meg_eta)

free MEG sensor shape: (16, 90)
free MEG eta: 13.298082191264779

Workflow noise-variance estimates

The workflow does not use alpha_SNR directly as a solver input. Instead, after sensor simulation it derives named noise-variance modes:

• oracle uses var(noise);

• baseline uses the pre-stimulus segment of y_noisy;

• adaptive_joint_learning passes no fixed noise_var to the solver.

The baseline estimate depends on tmin, stim_onset, and sfreq.

tmin = erp_config["tmin"]
stim_onset = erp_config["stim_onset"]
sfreq = erp_config["sfreq"]
pre_stimulus_onset = int((stim_onset - tmin) * sfreq)
y_pre = y_fixed_noisy[:, :pre_stimulus_onset]

oracle_noise_var = float(np.var(fixed_noise))
baseline_noise_var = float(np.mean(np.std(y_pre, axis=1) ** 2))

print("oracle noise variance:", oracle_noise_var)
print("baseline noise variance:", baseline_noise_var)
print("adaptive joint learning noise variance:", None)

oracle noise variance: 0.13790136520275284
baseline noise variance: 0.12615502818075974
adaptive joint learning noise variance: None

Effect of alpha_SNR

alpha_SNR is a mixing parameter in [0, 1]:

• 1.0 means no added noise;

• 0.0 means pure scaled noise;

• intermediate values mix signal and noise.

alpha_values = [1.0, 0.7, 0.3, 0.0]
alpha_outputs = []
for alpha in alpha_values:
    alpha_outputs.append(
        sensor_simulator.simulate(
            x=x_fixed,
            L=leadfield_fixed,
            alpha_SNR=alpha,
            sensor_white_noise_std=1.0,
            seed=RANDOM_SEED,
        )
    )

Plot sensor traces

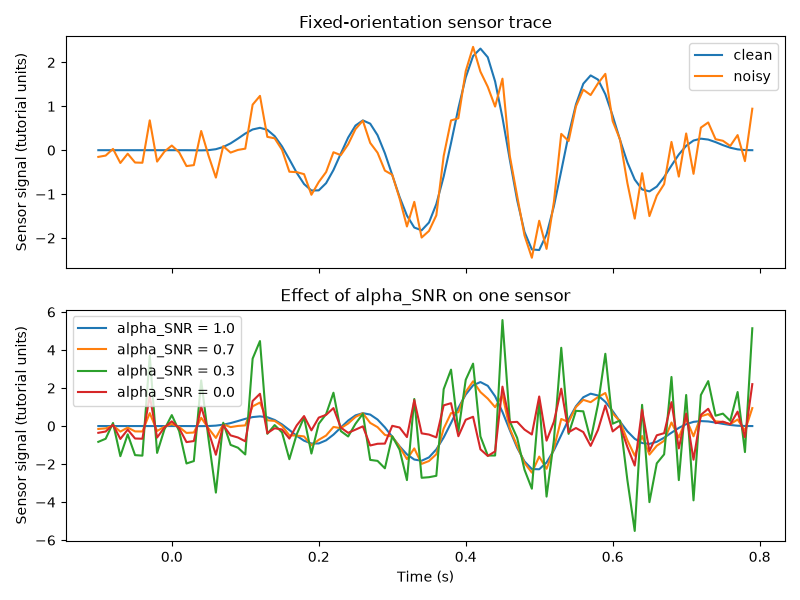

The first plot compares clean and noisy fixed-orientation sensor traces for one representative sensor. The second plot shows how alpha_SNR changes the observed trace.

sensor_idx = 0

fig, axes = plt.subplots(2, 1, figsize=(8, 6), sharex=True)
axes[0].plot(times, y_fixed_clean[sensor_idx], label="clean")
axes[0].plot(times, y_fixed_noisy[sensor_idx], label="noisy")
axes[0].set(
    ylabel="Sensor signal (tutorial units)",
    title="Fixed-orientation sensor trace",
)
axes[0].legend(loc="best")

for alpha, (_, y_noisy_alpha, _, _) in zip(alpha_values, alpha_outputs):
    axes[1].plot(times, y_noisy_alpha[sensor_idx], label=f"alpha_SNR = {alpha}")
axes[1].set(
    xlabel="Time (s)",
    ylabel="Sensor signal (tutorial units)",
    title="Effect of alpha_SNR on one sensor",
)
axes[1].legend(loc="best")
fig.tight_layout()

Compare sensor energy across modalities

The absolute magnitudes differ because the synthetic leadfields use different unit conventions. The relevant comparison here is structural, not absolute: shape compatibility and the effect of noise mixing.

energy_summary = {
    "fixed clean": np.linalg.norm(y_fixed_clean, ord="fro"),
    "fixed noisy": np.linalg.norm(y_fixed_noisy, ord="fro"),
    "free EEG clean": np.linalg.norm(y_eeg_clean, ord="fro"),
    "free MEG clean": np.linalg.norm(y_meg_clean, ord="fro"),
}
print(energy_summary)

{'fixed clean': np.float64(32.89446394819959), 'fixed noisy': np.float64(35.67080778140602), 'free EEG clean': np.float64(10.481744870962862), 'free MEG clean': np.float64(1188.8813207767196)}

What this stage produces

SensorSimulator.simulate returns:

• y_clean: noiseless sensor data;

• y_noisy: sensor data after additive white noise;

• noise: the added noise term;

• eta: the scaling factor implied by alpha_SNR.

These outputs are the direct inputs to CaliBrain inverse solvers.
