09. End-to-End Workflow

This tutorial ties together the main CaliBrain component classes in one small, runnable workflow:

• SourceSimulator for source-level ground truth;

• LeadfieldBuilder for a leadfield object;

• SensorSimulator for noisy sensor measurements;

• SourceEstimator for posterior source reconstruction;

• UncertaintyEstimator for pre-calibration empirical coverage;

• UncertaintyCalibrator for post-calibration isotonic recalibration.

It is intentionally lightweight and fully synthetic, but it follows the same conceptual order as the current fixed-orientation calibration workflow.

Scientific motivation

CaliBrain studies whether posterior uncertainty from inverse source imaging is empirically calibrated. An end-to-end run therefore needs all upstream pieces:

1. simulate source activity x_true;

2. obtain a leadfield L;

3. project to noisy sensors y_noisy;

4. reconstruct posterior mean and covariance;

5. derive uncertainty intervals and empirical coverage;

6. optionally fit a recalibration map on a train split and evaluate it on a matched eval split.

This tutorial demonstrates that full chain with the current high-level class interfaces and an active fixed-orientation solver.

from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
from mne.io.constants import FIFF

from calibrain import (
    LeadfieldBuilder,
    MetricEvaluator,
    SensorSimulator,
    SourceEstimator,
    SourceSimulator,
    UncertaintyCalibrator,
    UncertaintyEstimator,
    gamma_map_sflex,
)


RANDOM_SEED = 91

Step 1: define a compact fixed-orientation simulation setting

We keep the example fixed-orientation because it is the smallest configuration that still exercises the full calibration chain. The same scientific logic extends to free orientation in later tutorials.

erp_config = {
    "tmin": -0.1,
    "tmax": 0.8,
    "stim_onset": 0.0,
    "sfreq": 100,
    "fmin": 2,
    "fmax": 8,
    "amplitude_distribution": {
        "median": 8.0,
        "sigma": 0.15,
        "clip": [2.0, 20.0],
    },
    "random_erp_timing": False,
    "erp_min_length": 20,
}

n_sensors = 16
n_sources = 32
nnz = 4
alpha_snr = 0.7
nominal_coverages = np.linspace(0.0, 1.0, 11)

source_simulator = SourceSimulator(ERP_config=erp_config)
sensor_simulator = SensorSimulator()
uncertainty_estimator = UncertaintyEstimator(nominal_coverages=nominal_coverages)
metric_evaluator = MetricEvaluator(uncertainty_estimator)

sensor_simulator.set_sensor_metadata(
    kind=FIFF.FIFFV_EEG_CH,
    units=FIFF.FIFF_UNIT_V,
    unitmult=FIFF.FIFF_UNITM_MU,
    coil_type=FIFF.FIFFV_COIL_EEG,
)

Step 2: build a deterministic synthetic leadfield with LeadfieldBuilder

In paper-scale analyses, LeadfieldBuilder usually loads a precomputed subject-specific leadfield. Here we use its lightweight random mode and pair it with synthetic source coordinates for the sFLEX solver.

leadfield_builder = LeadfieldBuilder(leadfield_dir="unused_demo_leadfields")
leadfield_data = leadfield_builder.get_leadfield(
    subject="demo",
    orientation_type="fixed",
    retrieve_mode="random",
    n_sensors=n_sensors,
    n_sources=n_sources,
    return_metadata=True,
)

L = leadfield_data.leadfield
src_coords = np.random.default_rng(RANDOM_SEED).normal(scale=0.04, size=(n_sources, 3))

print("leadfield shape:", L.shape)
print("source coordinates shape:", src_coords.shape)

leadfield shape: (16, 32)
source coordinates shape: (32, 3)

Step 3: generate matched train/eval datasets

A calibration tutorial needs at least two splits:

• a train split for fitting the isotonic recalibration map;

• an eval split for reporting pre- and post-calibration coverage.

We keep the condition family fixed and change only the random seed. This corresponds to the logic of post_oracle in the workflow documentation.

x_true_train, active_sources_train = source_simulator.simulate(
    n_sources=n_sources,
    nnz=nnz,
    orientation_type="fixed",
    seed=RANDOM_SEED,
)
y_clean_train, y_noisy_train, noise_train, _ = sensor_simulator.simulate(
    x=x_true_train,
    L=L,
    alpha_SNR=alpha_snr,
    sensor_white_noise_std=0.2,
    seed=RANDOM_SEED,
)
noise_var_train = max(float(np.var(noise_train)), 1e-12)
estimator_train = SourceEstimator(
    solver=gamma_map_sflex,
    solver_params={"max_iter": 150, "tol": 1e-7, "sigma": 0.01, "src_coords": src_coords},
    noise_var=noise_var_train,
    n_orient=1,
)
estimator_train.fit(L, y_noisy_train)
result_train = estimator_train.predict()
train_dataset = {
    "orientation_type": "fixed",
    "coil_type": None,
    "x_true": x_true_train,
    "x_hat": result_train["posterior_mean"],
    "posterior_cov": result_train["posterior_cov"],
    "posterior_var": uncertainty_estimator.posterior_variance_from_cov(result_train["posterior_cov"]),
    "n_sources": x_true_train.shape[0],
    "n_times": x_true_train.shape[1],
    "seed": RANDOM_SEED,
    "nnz": nnz,
    "alpha_SNR": alpha_snr,
    "solver": "gamma_map_sflex",
    "noise_type": "oracle",
    "active_sources": active_sources_train,
    "noise_var": noise_var_train,
}

x_true_eval, active_sources_eval = source_simulator.simulate(
    n_sources=n_sources,
    nnz=nnz,
    orientation_type="fixed",
    seed=RANDOM_SEED + 1,
)
y_clean_eval, y_noisy_eval, noise_eval, _ = sensor_simulator.simulate(
    x=x_true_eval,
    L=L,
    alpha_SNR=alpha_snr,
    sensor_white_noise_std=0.2,
    seed=RANDOM_SEED + 1,
)
noise_var_eval = max(float(np.var(noise_eval)), 1e-12)
estimator_eval = SourceEstimator(
    solver=gamma_map_sflex,
    solver_params={"max_iter": 150, "tol": 1e-7, "sigma": 0.01, "src_coords": src_coords},
    noise_var=noise_var_eval,
    n_orient=1,
)
estimator_eval.fit(L, y_noisy_eval)
result_eval = estimator_eval.predict()
eval_dataset = {
    "orientation_type": "fixed",
    "coil_type": None,
    "x_true": x_true_eval,
    "x_hat": result_eval["posterior_mean"],
    "posterior_cov": result_eval["posterior_cov"],
    "posterior_var": uncertainty_estimator.posterior_variance_from_cov(result_eval["posterior_cov"]),
    "n_sources": x_true_eval.shape[0],
    "n_times": x_true_eval.shape[1],
    "seed": RANDOM_SEED + 1,
    "nnz": nnz,
    "alpha_SNR": alpha_snr,
    "solver": "gamma_map_sflex",
    "noise_type": "oracle",
    "active_sources": active_sources_eval,
    "noise_var": noise_var_eval,
}

print("train x_true shape:", train_dataset["x_true"].shape)
print("eval x_hat shape:", eval_dataset["x_hat"].shape)
print("eval posterior_var shape:", eval_dataset["posterior_var"].shape)

train x_true shape: (32, 90)
eval x_hat shape: (32, 90)
eval posterior_var shape: (32,)

Step 4: compute the pre-calibration coverage curve

UncertaintyEstimator converts posterior means and source-wise variances into intervals over the nominal coverage grid. In the current workflow, calibration is typically performed in aggregated mode, so we use the time-aggregated interval routine here.

pre_curve = uncertainty_estimator.calibration_curve_intervals_aggregated(
    x_true=eval_dataset["x_true"],
    x_hat=eval_dataset["x_hat"],
    posterior_var=eval_dataset["posterior_var"],
)
pre_metrics = metric_evaluator.calibration_metrics_4(
    pre_curve["nominal_coverages"],
    pre_curve["empirical_coverages"],
)

print("pre empirical coverages:", np.round(pre_curve["empirical_coverages"], 3))
print("pre calibration metrics:", pre_metrics)

pre empirical coverages: [0.    0.438 0.5   0.594 0.656 0.688 0.719 0.75  0.875 0.938 1.   ]
pre calibration metrics: {'max_underconfidence_deviation': 0.0, 'max_overconfidence_deviation': 0.3375, 'mean_absolute_deviation': 0.15056818181818177, 'mean_signed_deviation': 0.15056818181818177}

Step 5: fit and evaluate post-calibration with UncertaintyCalibrator

UncertaintyCalibrator consumes the same dataset structure used by the workflow. Here we fit on the train split and evaluate on the matched eval split. This is the high-level class API corresponding to post_oracle.

calibrator = UncertaintyCalibrator(uncertainty_estimator, metric_evaluator)
calibration_result = calibrator.calibrate(
    train_data=train_dataset,
    test_data=eval_dataset,
    fit=True,
)

post_block = calibration_result["post_calibration"]
print(
    "post recalibrated nominal coverages:",
    np.round(post_block["recalibrated_nominal_coverages"], 3),
)
print(
    "post empirical coverages:",
    np.round(post_block["empirical_coverages"], 3),
)

post recalibrated nominal coverages: [0.    0.012 0.03  0.048 0.066 0.083 0.11  0.42  0.553 0.936 1.   ]
post empirical coverages: [0.    0.188 0.281 0.344 0.375 0.406 0.438 0.688 0.719 0.969 1.   ]

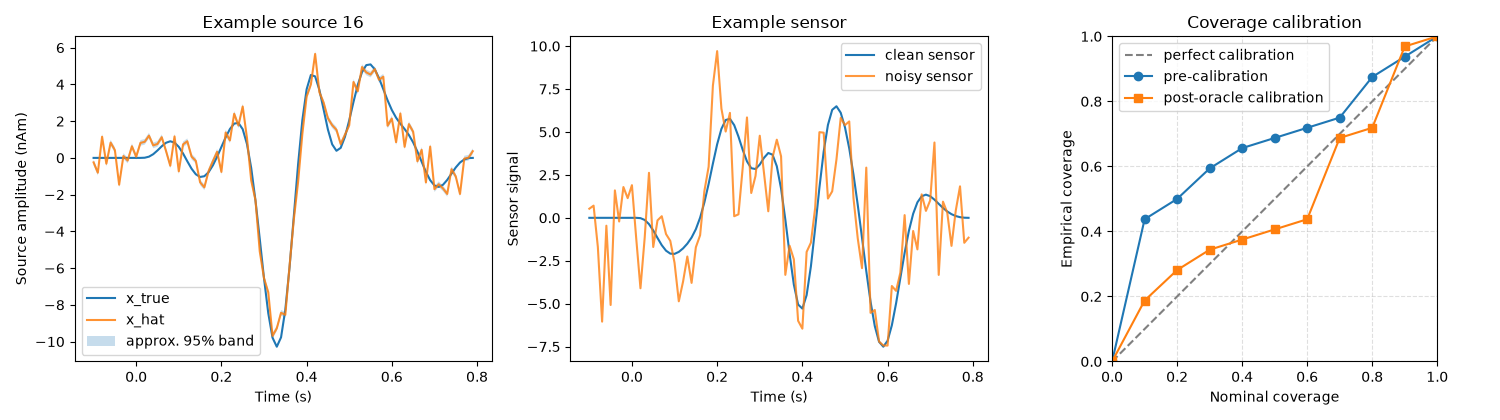

Step 6: visualize the full end-to-end result

The figure summarizes three stages of the workflow:

• one reconstructed source waveform;

• one clean/noisy sensor trace;

• pre- and post-calibration coverage curves.

time = np.arange(train_dataset["x_true"].shape[1]) / erp_config["sfreq"] + erp_config["tmin"]
example_source = int(eval_dataset["active_sources"][0])

fig, axes = plt.subplots(1, 3, figsize=(15, 4.2))

axes[0].plot(time, eval_dataset["x_true"][example_source], label="x_true")
axes[0].plot(time, eval_dataset["x_hat"][example_source], label="x_hat", alpha=0.85)
band = 1.96 * np.sqrt(eval_dataset["posterior_var"][example_source] / eval_dataset["x_true"].shape[1])
axes[0].fill_between(
    time,
    eval_dataset["x_hat"][example_source] - band,
    eval_dataset["x_hat"][example_source] + band,
    alpha=0.25,
    label="approx. 95% band",
)
axes[0].set(
    xlabel="Time (s)",
    ylabel="Source amplitude (nAm)",
    title=f"Example source {example_source}",
)
axes[0].legend(loc="best")

y_clean_eval, y_noisy_eval, _, _ = sensor_simulator.simulate(
    x=eval_dataset["x_true"],
    L=L,
    alpha_SNR=alpha_snr,
    sensor_white_noise_std=0.2,
    seed=int(eval_dataset["seed"]),
)

axes[1].plot(time, y_clean_eval[0], label="clean sensor")
axes[1].plot(time, y_noisy_eval[0], label="noisy sensor", alpha=0.8)
axes[1].set(
    xlabel="Time (s)",
    ylabel="Sensor signal",
    title="Example sensor",
)
axes[1].legend(loc="best")

axes[2].plot([0, 1], [0, 1], "--", color="0.5", label="perfect calibration")
axes[2].plot(
    pre_curve["nominal_coverages"],
    pre_curve["empirical_coverages"],
    "o-",
    label="pre-calibration",
)
axes[2].plot(
    post_block["nominal_coverages"],
    post_block["empirical_coverages"],
    "s-",
    label="post-oracle calibration",
)
axes[2].set(
    xlabel="Nominal coverage",
    ylabel="Empirical coverage",
    xlim=(0, 1),
    ylim=(0, 1),
    title="Coverage calibration",
)
axes[2].set_aspect("equal", adjustable="box")
axes[2].grid(True, linestyle="--", alpha=0.4)
axes[2].legend(loc="best")

fig.tight_layout()

Summary

This single tutorial used the current high-level component interfaces in the same order as the calibration workflow:

• SourceSimulator produced ground-truth source activity;

• LeadfieldBuilder supplied a leadfield and source coordinates;

• SensorSimulator generated noisy sensor measurements;

• SourceEstimator produced posterior means and covariance;

• UncertaintyEstimator computed pre-calibration empirical coverage;

• UncertaintyCalibrator fitted and evaluated a post-calibration mapping.

For larger experiments, the workflow scripts automate the same logic across many runs, then write manifest entries, aggregated datasets, and calibration summaries on disk.
